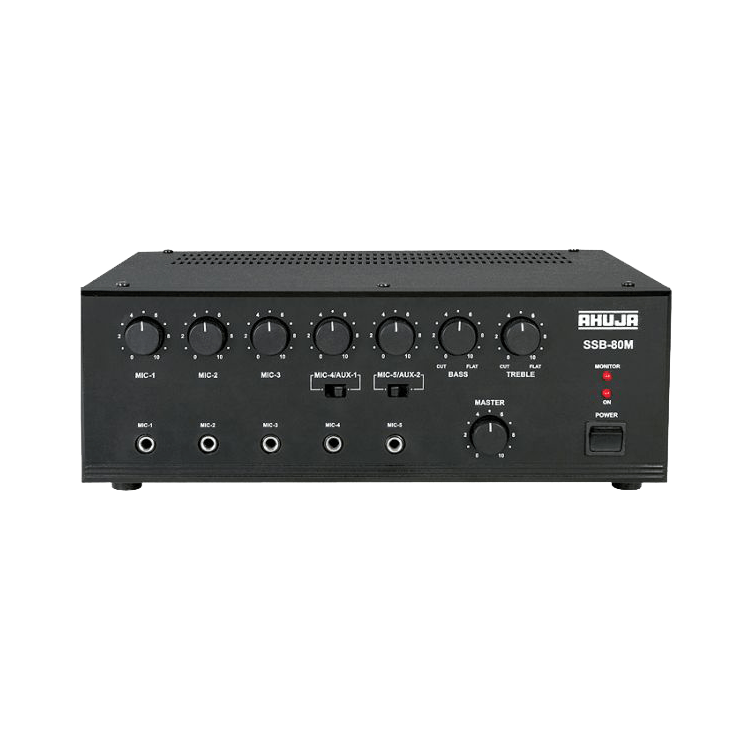

- Preamplifier Output for recording the program
- Output Regulation: 2 dB, no load to full load at 1kHz
- Tone Controls: Bass: -10dB at 100Hz, Treble: -10dB at 10kHz
- 5 Mic & 2 Aux Inputs
- Cut type Bass & Treble controls
- Input Channels: 5 Mic 0.65mV/4.7k, 2 Aux 100mV/470k
- Outputs: Preamp 200mV/600
- Power Supply: AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)
- Line Output for connecting to a Booster Amplifier
- Instant transfer to DC power (Car Battery) if AC power fails
- Frequency Response: 65-15,000Hz 3dB
- Signal to Noise Ratio: 60dB
- Speaker Outputs: 4, 8, 16, 70V & 100V
- Power Consumption: AC: 180VA DC: 3A
- Dimensions: W355 H133 D285 mm
- Long lasting and durable
An amplifier, electronic amplifier or (informally) amp is an electronic device that can increase the power of a signal (a time-varying voltage or current). It is a two-port electronic circuit that uses electric power from a power supply to increase the amplitude of a signal applied to its input terminals, producing a proportionally greater amplitude signal at its output. The amount of amplification provided by an amplifier is measured by its gain: the ratio of output voltage, current, or power to input. An amplifier is a circuit that has a power gain greater than one. An amplifier can either be a separate piece of equipment or an electrical circuit contained within another device. Amplification is fundamental to modern electronics, and amplifiers are widely used in almost all electronic equipment. Amplifiers can be categorized in different ways. One is by the frequency of the electronic signal being amplified. For example, audio amplifiers amplify signals in the audio (sound) range of less than 20 kHz, RF amplifiers amplify frequencies in the radio frequency range between 20 kHz and 300 GHz, and servo amplifiers and instrumentation amplifiers may work with very low frequencies down to direct current. Amplifiers can also be categorized by their physical placement in the signal chain; a preamplifier may precede other signal processing stages, for example. The first practical electrical device which could amplify was the triode vacuum tube, invented in 1906 by Lee De Forest, which led to the first amplifiers around 1912. Today most amplifiers use transistors.
AHUJA RADIOS is today India’s leading manufacturer & exporter of Public Address Equipment. Established in 1940, in last 8 decades we have been able to cement AHUJA as the most trusted brand in sound reinforcement industry by introducing reliable products through continuous research & development. Right since the inception company has aspired and worked diligently towards offering wide range of products to fulfill every conceivable PA application requirement.
Ahuja Radios has always been the pioneer in the field of Public Address Systems in India and has invariably been at the forefront in leading the PA industry through changing times. Owing to this pro-active approach AHUJA today has become the preferred option for applications like announcements at public places, sound reinforcement at auditoriums / conference halls, seamless counter communication, crowd control etc. Installations of Ahuja products at prestigious locations like Formula 1 Race Track at G. Noida, Delhi Metro Stations, Educational Institutions of repute like IIT’s / IIM’s, numerous Malls / Large Format Retail Outlets and various Government Establishments across the country are apt testimonials of that.
RESEARCH, DEVELOPMENT & PRODUCTION
The Ahuja Research and Development Centre is recognized by the Government of India and takes pride in developing products known to perform with absolute reliability even in the most extreme operating & climatic conditions.
EXTENSIVE RANGE OF PA PRODUCTS
Ahuja offers the most comprehensive range of reliable sound reinforcement products. The diverse portfolio of products comprising of Amplifiers, Mixers, Microphones, Speakers/ Powered Speakers, Conference System, Counter Communication Systems etc. are designed to deliver most faithful and natural reproduction of sound in variety of applications.
Our products are available all across the country through a network of over 500 retailers and exports spread over 50 countries in 5 continents across the globe.
